Length 8 Foot
Length: 6'
Gauge: 18
Wires: 2
Type: Bare Wire

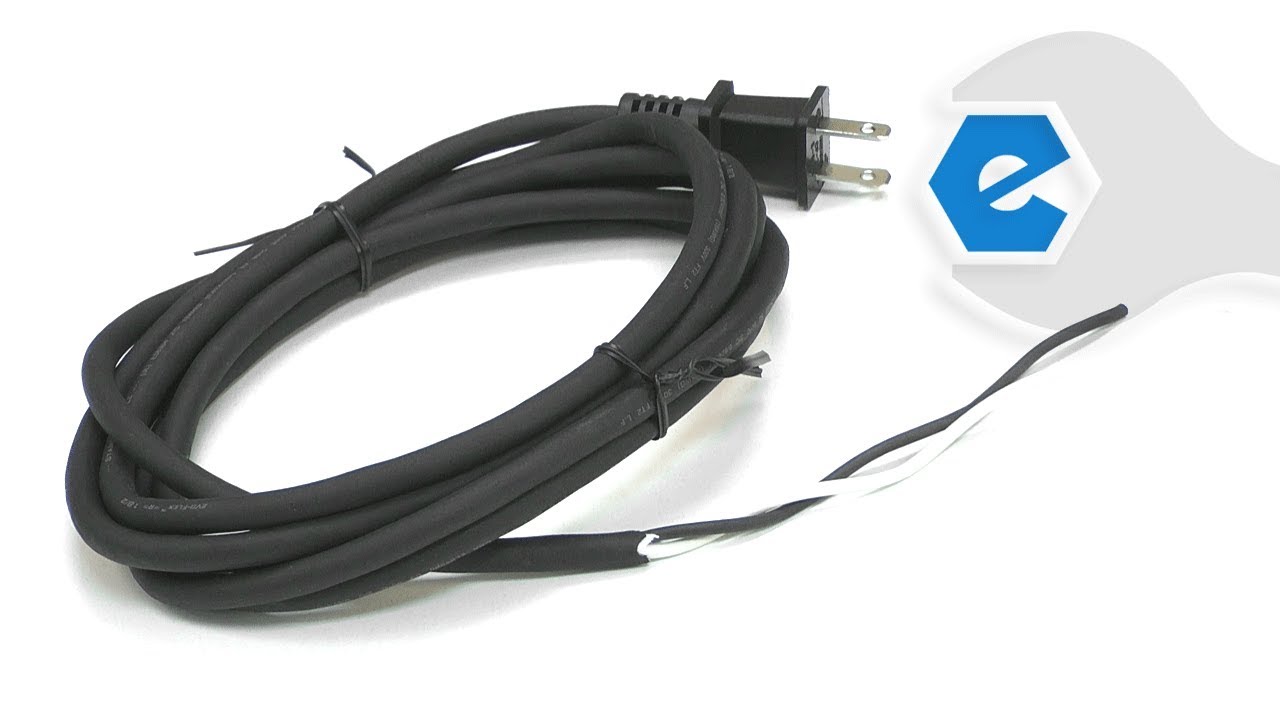

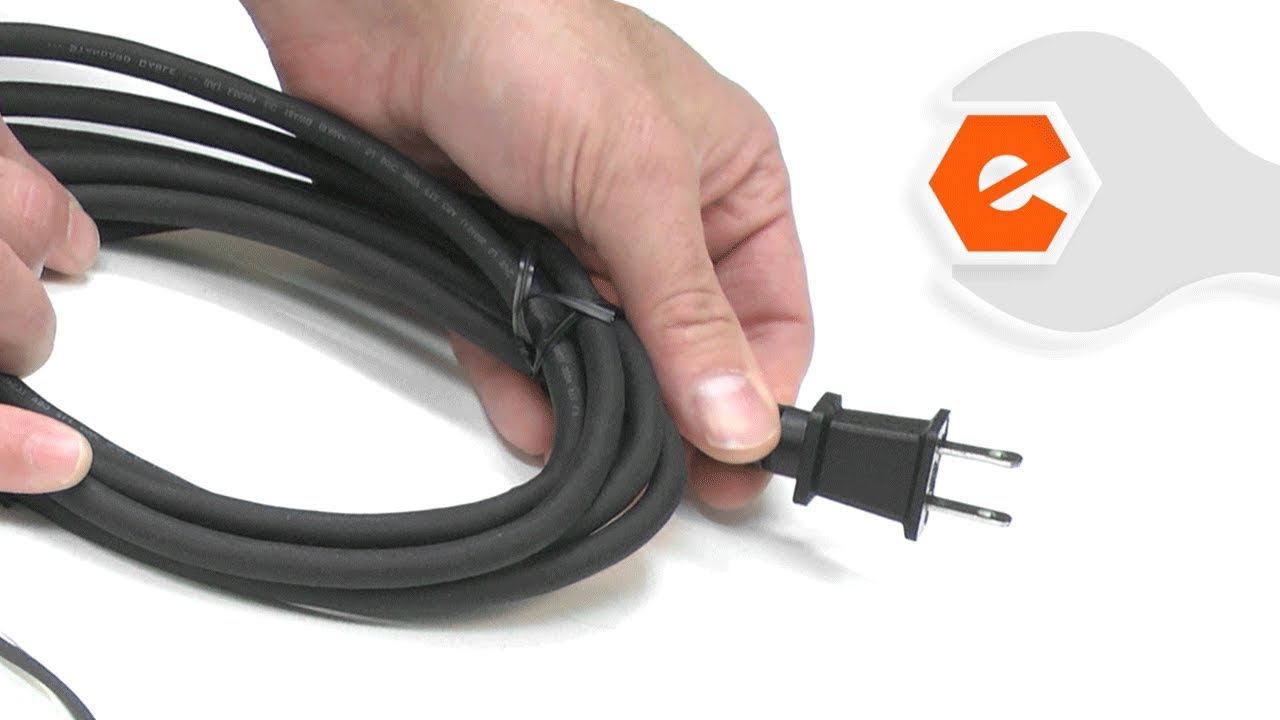

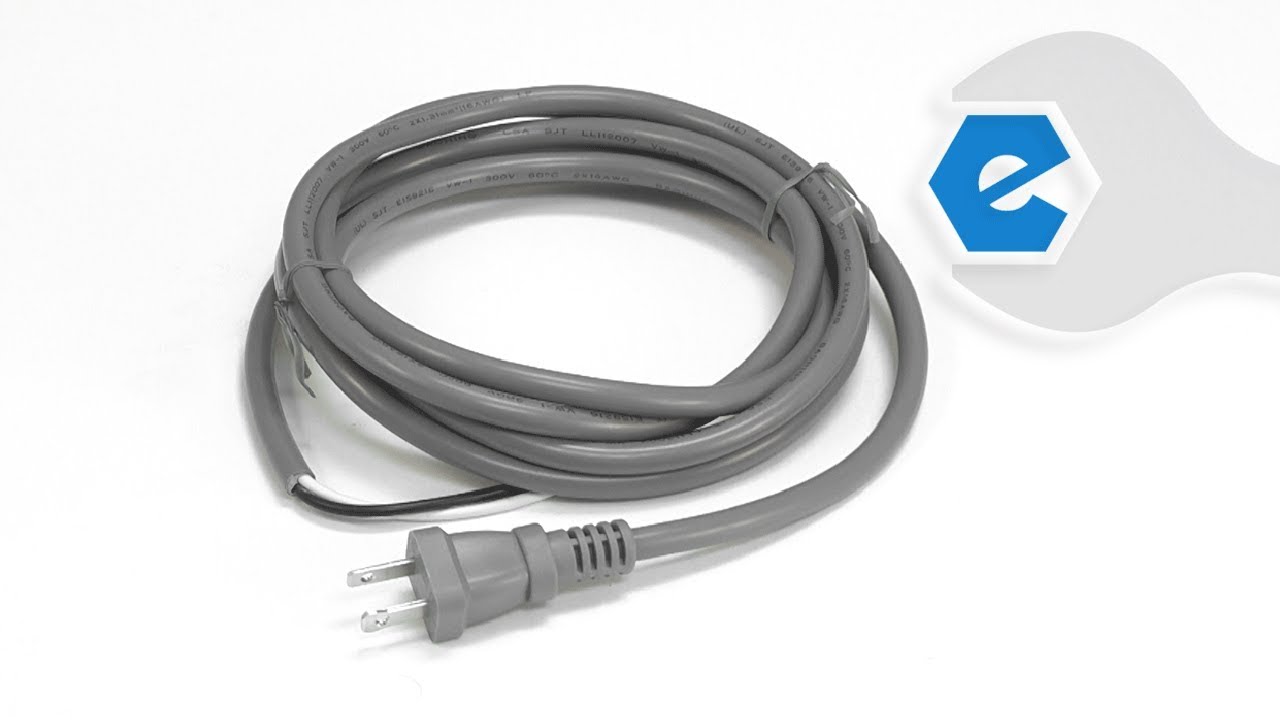

This power supply cord is a genuine OEM sourced replacement part. It is specially made to supply power from a standard outlet to Makita power tools. A cracked or damaged cord should be replaced before continuing to use the tool. This rubber insulated cord is sold individually. It comes with a rubber sleeve grommet that is not sold separately.
Replacing this power supply cord you will need a screwdriver.
• Remove the housing screws
• Remove the the housing
• Disconnect the old cord wires
• Remove the old power cord
• Secure the new cord in place
• Connect the wires
• Reassemble and test the new cord
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Perfect part, replacement not so much
The part itself was a direct replacement and I was happy to have found it. The problem was replacing the damaged cord, once I split the case small springs and parts fell out of the trigger assembly, after attempting to put it all back together and realized it would never work again I threw it in the trash. I kept the cord just in case one of my friends may need one someday, as for me, I bought a new drill, works great!
Guest - August 6, 2019
Verified Purchase
★★★★★
★★★★★
Power cord replacement
replacement power cord was received in short order and I replaced with the help of a short video showing details.
Thank you!
Stu
Guest - September 9, 2019
Verified Purchase
★★★★★
★★★★★
perfect fit
correct gauge, diameter & length
Guest - September 14, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit
Ordered this for my 34 year old saws all. Exact replacement, perfect fit, easy to order and fast shipping. Saw should out live me now.
Guest - April 19, 2021
Verified Purchase
★★★★★
★★★★★
The repair was easy, replacing a power cord on my plane.
The part was received in good condition as expected and in fairly quick time.
Guest - April 28, 2021
Verified Purchase
★★★★★
★★★★★
Fast delivery, correct product
Just what I needed
Guest - July 23, 2021
Verified Purchase
★★★★★
★★★★★
Power cord replacement
It's a power cord. Not much to say about that. It arrived before the promised date, fit and worked as it should.
Guest - July 24, 2021
Verified Purchase
★★★★★
★★★★★
replacing power cord
very easy, the right part fitting my impact driver and help with an install video
Guest - January 1, 2023
Verified Purchase
★★★★★
★★★★★
Super easy repair and great quality cord!
I used this to repair my father-in-law’s makita saws-all. His was just so old and worn out, the sheathing was deteriorating. This cord brought this old tool back to life! The only thing I had to transfer over was the rubber boot where it goes into the saw. Otherwise, it was a straight swap. Works great again!
Jason - March 15, 2023
Verified Purchase
★★★★★
★★★★★
Very easy repair as a switch has two set screws that you unloosen and slide up in and then retighten
Good part very quick and thorough exploded views of lots of parts on this website if you're handy a little bit you could pretty much fix everything you have with them keep up a good job
Christopher - August 15, 2023
Verified Purchase
< Prev
1
2
3
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
The power cord is attached to the switch via a terminal box where you insert the wires and they lock into place. I had to disassemble the terminal connection box to release the old wires. There were numerous very small parts inside the electrical terminal that were very tedious to keep in place and it took some time, good light and a st
... Read moreeady hand to reassemble. The power cord attachment was easy and would have been super easy if there had been a screw terminal connection.
Read less
Did you find this story helpful?
Thank you for voting!
Trigger switch was defective, after 15 years of use. It was easier to get a new power cord rather than try to get the old one to work.
Split the drill body apart by removing the several screws that hold it together. Gently lift one side away from the other, leaving all the guts lying in one side. Pull the trigger assembly away from the body and pull the wires out of the trigger assembly. Use a small flat head screwdriver to release the wires from the trigger assembly.
... Read more Keep track of which wire goes where. Put the wires from the drill motor into the appropriate holes, then do the same for the new power cord, and re-install the new trigger assembly into the drill body. Fit the other half of the drill body back to the main half and make sure everything seats well, then replace the screws.
Removed 6 screws and removed the top half of drill. Removed the old cord wires from the switch, then connected the new cord wires to the switch. Slipped the new dust cover over the trigger and put it back together. Works like new. .
Remove one half of the housing, then disconnect the terminals from the switch. You may want to order the terminals because they do not come with a new cord. Attach the terminals to the new cord and connect them to the switch. Put housing together.
Did you find this story helpful?
Thank you for voting!
The friction connection between the power chord and the switch failed.
1. I examined the replacement parts.
2. The power chord supplied by your company did not include the required strain relief.
3. I modified the new power chord by cutting off the strain relief from the old chord set and installing it on the new chord set. (24 hour cure time for the epoxy used to attach the strain relief.)
... Read more>4. I removed the defective switch and chord set.
5. Since no instructions were included, I contacted your customer service to obtain a schematic of my drill.
6. No schematic was available from your company, but I was given the phone number of MAKITA customer service who supplied the required documentation.
7. The compression connectors on the switch required several attempts to attach the power chord and additional internal wiring to the switch. (There was little tolerance to insert each wire into the mounting holes on the switch utilizing a jeweler\'s screw driver.)
8. I reassemble the components on the drill body including the new switch dust cover. (A slot was not provided on the dust cover to allow the rotation direction control to protrude.)
9. I then successfully tested the drill.
Read less
Did you find this story helpful?
Thank you for voting!
Saw was bought in the early nineties,and the cord and cord guard is cracked and wore out.
1. Removed screws from the saw housing.
2. Separated saw housings to expose cord connection.
3. Removed screws from switch.
4. Removed wires from switch.
5. Removed old power cord and cord guard from saw.
6. Installed new cord guard on new cord and connected wires to switch.
7. Mounted switch back int
... Read moreo saw.
8. Put saw housing back together and installed screws.
Removed one half of the housing and disconnected the old cord. Cut the wires to length and attached the new receptacles. Connected the cord wires. Replace the housing half.
Simply opened up the housing and remove the terminals from the switch and field. You may want to order the the 2 terminals needed to install cord leads on the switch and field. Then make sure all the internal parts are where the belong. And screw the housing back together.
