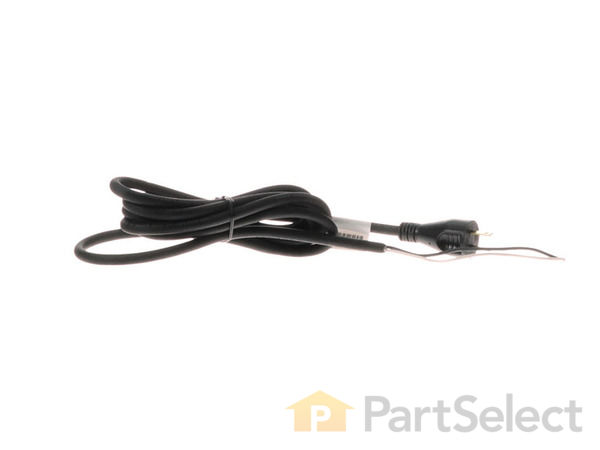

This cord is a genuine DeWalt replacement part and is sold individually. It is constructed with tough, thick outer rubber insulation for a long service life. Power Cord Specifications: • 2 Prongs • 2 Wires • 18 Gauge • 8 Feet Long
Removed handle cover and cord clamp. Disconnected cord from switch. Removed the cord protector from the old cord and put it on the new cord. I connected the new cord to the switch. And attached the cord clamp.The installed the handle cover. To replace the brushes I removed the brush caps with a screwdriver, then I removed the worn brushes
... Read more, and installed the new ones. Replace the brush caps. Tested the tool and it worked like new.
Removed the handle assembly. Then the cord clamp. Removed the old cord wires from the switch. You may want to trim the new cord wires to the correct length needed. I then place the cord protector on the new cord and connected the wires to to the switch, and replaced cord clamp. When assembling the handle assembly, make sure no wires are
... Read moregoing to be pinched. Then assemble housing. Done.
Read less
Did you find this story helpful?
Thank you for voting!
Cord and Protector were cracked and needed to be replaced.
Removed 1/2 of the handle, removed the old cord and protector, installed heat shrink tubing, soldered in the new cord, shrunk the tubing with a lighter, installed and tightened the cord cover, job done.
Simply disassembled the handle cover over cord entry, loosened the wire terminal screws, removed old cord and protector. Laid new cord and protector in place, reattached wires and cover plate. Works good as new!
Remove the rear handle cover
Remove the cord clamp
Remove the cord wires from the switch
Remove the cord relief from the old cord and slide it on the new cord
Connect the cord wires to the switch
Install the cord clamp
Install the rear handle cover
Cut cord leads to correct length, stripped 1/4\" insulation off, tinned leads, took back of handle housing off and replaced power cord on three screw guns. Used end of large paperclip to release old leads and insert new.
Did you find this story helpful?
Thank you for voting!
Power cord was old & cracked and the switch no longer worked.
Remove the three screws that go through the side of the handle and two screws that attach the removable side of the handle to the motor housing. Separate the handle. Cut the wires from the motor and power cord close to the switch leaving as much wire to work with as possible. Remove the screw holding the switch to the grinder housing a
... Read morend remove the switch. Strip about 3/8 inch of the insulation from the end of the motor wires and with the screws provided, attach to the lugs on the switch labeled \"Field\" (per instructions included with the new switch) and similarly attach the power cord wires to the \"Cord Lead\" lugs on the switch. Secure the new switch into the housing replacing its screw. Tuck the wires into the appropriate cavities and reattach the handle.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10169907
Manufacturer Part Number: 330077-98
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
