9301385-1-M-MTD-732-0188A-Edger Torsion Spring

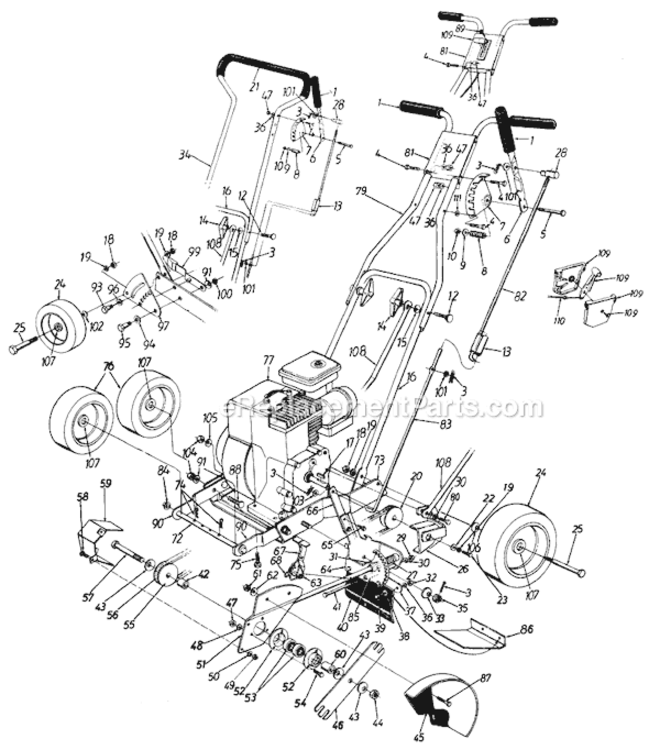

Part Location Diagram of 732-0188A MTD Edger Torsion Spring
See part 68 in the diagram
( Grid squares measure 1x1 inch )
9301385-1-S-MTD-732-0188A-Edger Torsion Spring Part Location Diagram of 732-0188A MTD Edger Torsion Spring

Edger Torsion Spring 732-0188A

Manufactured by:
MTD
ERP Number:
ERP9301385
Part Number:
732-0188A
Original Equipment Manufacturer ?
  Works with your model  253-586-720!
$14.02
★★★★★
★★★★★
1 Review
On Order

A Bit Difficult

30 - 60 mins

(8 rated repairs) ?
  Works with your model   253-586-720!

Jump to:

Description Frequently Purchased Together Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This is an authentic OEM sourced replacement part which is specially designed for lawn and garden equipment. It is a standard hardware which may have multiple applications, please make sure to refer to the appropriate diagrams of your model for the correct location and application of this item. Keep in mind this high-quality torsion spring is made of durable metal and is sold individually.

Frequently Purchased Together

?
Tiller Cotter Pin
$6.03
On Order
Minimum Quantity of 2 required

Troubleshooting

This part works with the following brands:
  • MTD
  • Cub Cadet
  • Yard Machines
  • Craftsman
  • Troy-Bilt
  • Yard Man
  • Bolens
  • Husky
This part works with the following products:
  • Edger
  • Trimmer
  • Snow Blower
  • Engine
  • Lawn Tractor Accessories
Part# 732-0188A replaces these:
  • 732-0188
  • 732-0188A
  • 732-0188A-CM
★

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
  • 5 stars
    1
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Good Service, Right Part
Not much to say. Everything went as promised. The price and shipping were spot on and the torsion spring was a good fit and seems to be what my edger needed. Will order again when I need such parts.
Guest - October 28, 2019
Verified Purchase

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(8 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Replace the Edgers Sidewalk Adjustment bar

DENNIS from APOPKA, Florida

3 of 3 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set, Wrench set
Parts Used:
747-04110A, 732-0188A
Remove cover plate, take spring and broken bar out. Replace bar, add spring making sure it faces correct way. Replace cover plate, attach belt from engine onto the blade pulley. The repair works best with edger on its side so gas tank needs to be empty.
Did you find this story helpful?
Thank you for voting!

Pressure spring was needed to keep adjustment rod in place.

Chris from Gulfport, Mississippi

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Parts Used:
732-0188A
Repair went well. Had to loosen the housing that holds the arm and spring a bit. This allowed me to be able to place the adjustment rod through the rod arm and tension spring. Placing a vise grip on the end of the arm helped to keep the spring in place while nudging it on with a screw driver. After the tension spring was in place I co uld tighten all the bolts on the arm housing and made sure the belt was in proper alignment.
Read less
Did you find this story helpful?
Thank you for voting!

blade adjustment rod broke, replaced rod

James from Burlington, Wisconsin

1 person found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Wrench (Adjustable), Wrench set
Parts Used:
747-04110A, 732-0188A, 781-0080-0637
difficult to figure out how to replace the adjustment rod
Did you find this story helpful?
Thank you for voting!

Angle adjustment got bent

Jene from Dallas Center , Iowa

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
747-04110A, 732-0188A
Removed old , replaced with new
Did you find this story helpful?
Thank you for voting!

Blade adjustment arm broke

John from GUYTON, Georgia

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Socket set
Parts Used:
747-04110A, 732-0188A
There are several step by steps described already. The only suggestion I can add is to pay attention when replacing the torsion spring. I made a bonehead mistake and installed incorrectly the first time.
Did you find this story helpful?
Thank you for voting!

Angle adjustment lever and spring had broken completely off. Could not align blade properly.

James from Spring, Texas

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers, Socket set, Wrench set
Parts Used:
747-04110A, 732-0188A
Removed 4 bolts holding the adjustment shaft.
Removed drive belt
Installed new adjustment lever, then spring.
Re-attached the adjustment shaft to the engine frame and loosely tightened bolts
Used screwdriver as a lever to stretch the drive belt back into the pully
Firmly tightened the 4 bolts holding the adju stment shaft
Project complete

Read less
Did you find this story helpful?
Thank you for voting!

Blade ajustment lever broke

Robert from Coeur d Alene, Idaho

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
747-04110A, 732-0188A
Removed tilt adjustment holder,
Removed belt tightener
Put new rod that adjusts the blade direction
Put back together in reverse of taking apart.
Hardest part was holding spring down while putting in bolts.

Did you find this story helpful?
Thank you for voting!

Lever for blade angle broke

Marc from TIFTON, Georgia

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers
Parts Used:
747-04110A, 732-0188A, 714-3010
Removed cotter key and broken lever. Installed new lever, spring ang cotter key.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9301385
Manufacturer Part Number: 732-0188A
Brand Model Number Description
MTD 06-010706 Edger - MTD Edger Model 06-010706/1990 (06010706/1990, 06 010706/1990) Parts
MTD 06-348080 Edger - MasterCut Edger Model 06-348080/1991 (06348080/1991, 06 348080/1991) Parts
Troy-Bilt 1171314 Tiller - 1171314 - Tillers Brushcutters And Pruners
MTD 132-446 Edger - MasterCut Edger Model 132-446 (132446, 132 446) Parts
MTD 188-942 Edger - MTD Edger Model 188-942 (188942, 188 942) Parts
MTD 223-8953-00 Edger - MTD Edger Model 223-8953-00 (223895300, 223 8953 00) Parts
MTD 223-9014-00 Edger - MTD Edger Model 223-9014-00 (223901400, 223 9014 00) Parts
MTD 223-9113-00 Edger - MTD Edger Model 223-9113-00 (223911300, 223 9113 00) Parts
MTD 223-921-700 Edger - MTD Edger Model 223-921-700 (223921700, 223 921 700) Parts
MTD 225-587B000 Edger - Edger
MTD 225-587B002 Edger - Edger
MTD 225-587B009 Edger - Edger
MTD 225-587B016 Edger - Edger
MTD 225-587B019 Edger - Edger
MTD 225-587B022 Edger - Edger
MTD 225-587B026 Edger - Edger
MTD 225-587B029 Edger - Edger
MTD 225-587B033 Edger - Edger
MTD 225-587B054 Edger - Edger
MTD 225-587B057 Edger - Edger
MTD 225-587B077 Edger - Edger
MTD 225-587B098 Edger - Edger
MTD 225-587B105 Edger - Edger
MTD 225-587B118 Edger - Edger
MTD 225-587B121 Edger - Edger
MTD 225-587B129 Edger - Edger
MTD 225-587B131 Edger - Edger
MTD 225-587B134 Edger - Edger
MTD 225-587B138 Edger - Edger
MTD 225-587B145 Edger - Edger
