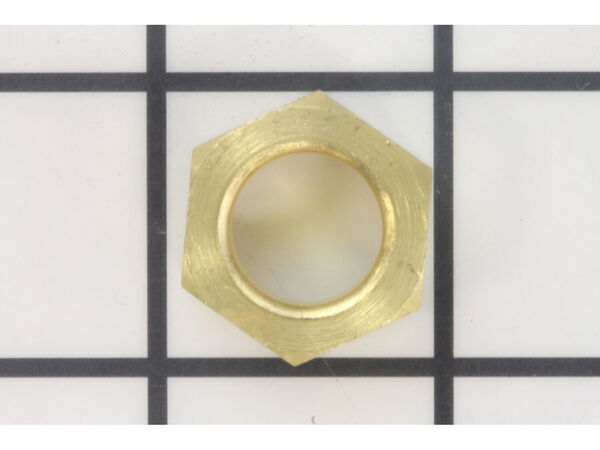

Genuine OEM replacement part designed for a variety of Air Compressors. This part is made out of Metal and it is Sold Individually. It does include sleeve. This item allows to connect two like-diameter fasteners or tubes.
Nothing special take tube off put nuts on new tube then o-ring , and tighten it back in place simple thank you for having the parts I needed. Planing on other repairs now I know where to get parts.
1. Removed the plastic cover.
2. Removed the old outlet tube.
3. Threaded the new outlet tube.
4. Make a test for air leaks.
5. Reattached the plastic cover.
Did you find this story helpful?
Thank you for voting!
Outlet tube broke when the compressor was dropped off a truck.
Removed the plastic housing. Outlet tube was readily accessible. Unscrewed the nuts that attached the tube to the compression unit. Installed new tube. Easy. Cost me about $30 to repair a $350 compressor.
Remove both Wheels to gain access to the shroud around the compressor once both shroud halfs are off the air outlet tube nuts are visible loosen nuts remove tube take notice where the o-ring is located.
Had to remove the top plate which holds the manifold, the part that has the gauges and hose outlets on it. Then I had to remove the outlet tube using a 14 mm wrench. I had to put on the o-ring and nuts making sure they go in the right direction, the compression fitting has to go on a certain way. I then tightened the tube down. Replaced m
... Read moreanifold and replaced the top plate. I did some other things like checked the regulator. Made sure the cutoff was working right.
1. Remove compressor housing
2. Unscrew the nuts and remove outlet tube
3, Check new outlet tube to make sure angle is correct
4. Install O-Ring and nuts
5. Insert outlet tube with nuts and hand tighten nuts
6. Tighten nut on compressor and then tank nut
7. Turn on and spray connection with soapy water
... Read more 8. Replace housing
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP18997484
Manufacturer Part Number: SSP-7812
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
