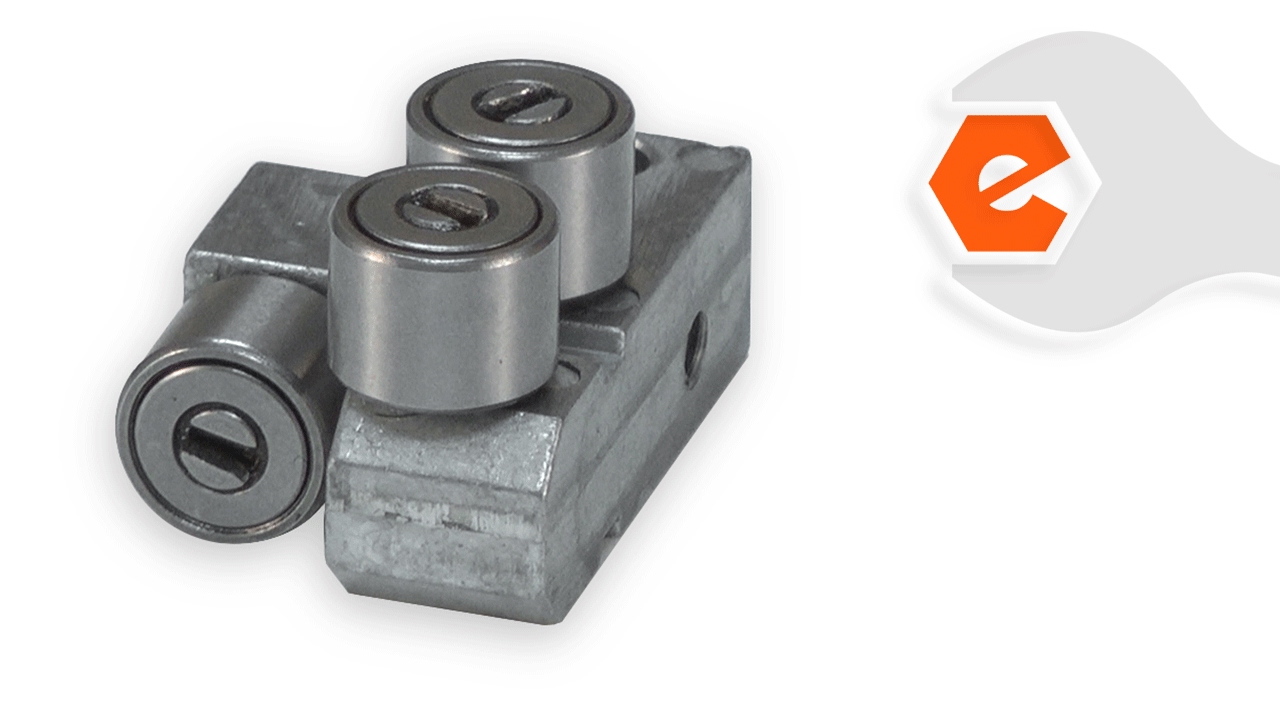

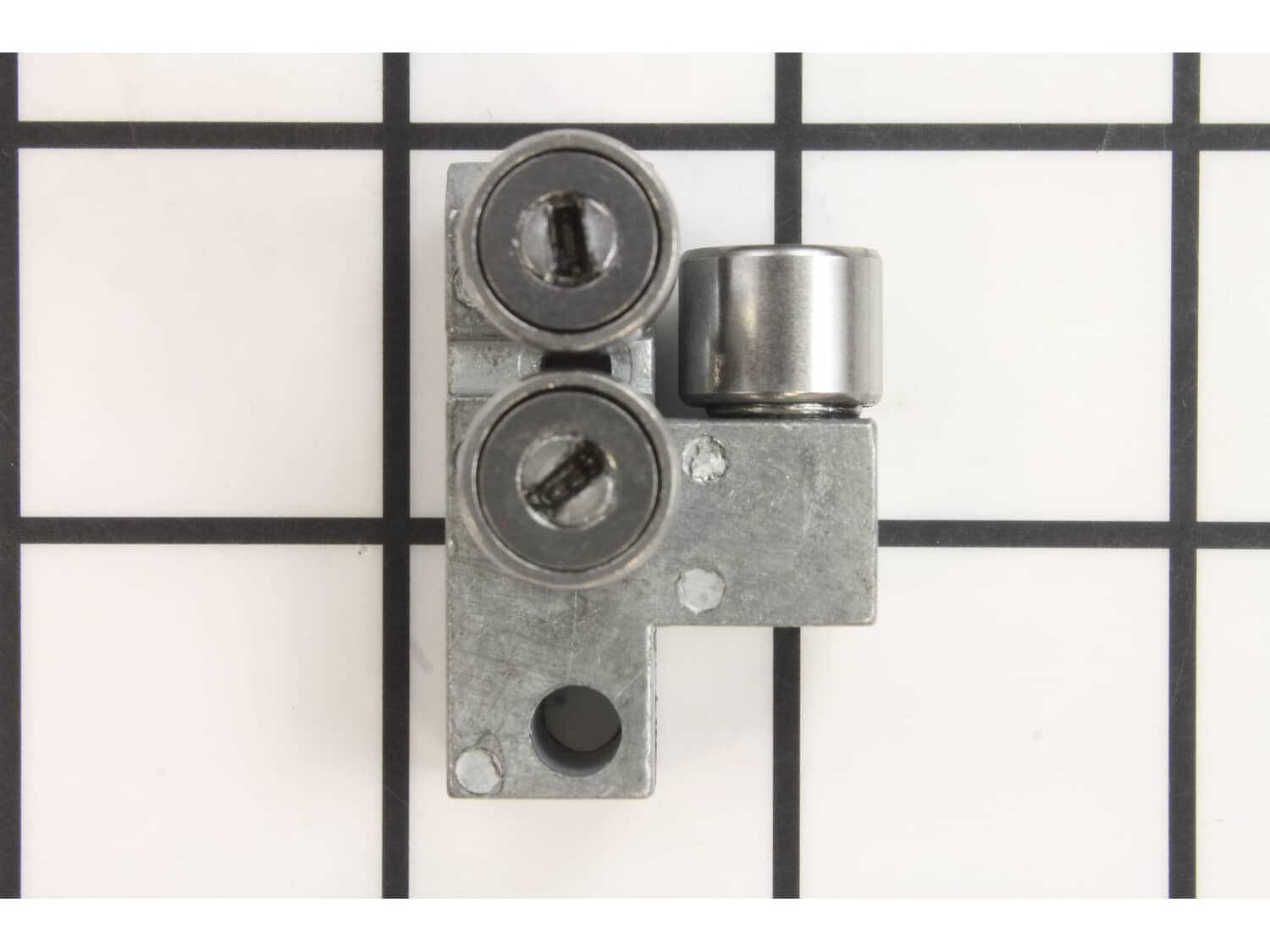

This is a genuine Milwaukee replacement part, it is sold individually. It is used on all the Bandsaw models shown below. The purpose of the Rear Blade Guide Assembly, is to keep the blade on the bandsaw blade tracking straight as you are cutting.. It also helps track the blade on the blade pulley. If your Blade Guide Block is in good shape and just the bearings are worn. You can order them individually under part number 02-25-0260. These fit both the Back and Front Guide Block. There are six per tool.
The rear blade guide attaches with two allen bolts. One of the bolt holes in the new guide did not have threads. I ran a tap down the hole and it went on easily.
The pulley tires go on a lot easier if you take the pulleys off of the saw.
Did you find this story helpful?
Thank you for voting!
Guides and pulley tires were just worn out and the saw wouldn\'t cut straight.
Removed the blade pulley cover, and removed the broken blade pulley. Placed the pulley tire on the new blade pulley and install the new pulley. Removed the front and back blade guide assemblies and installed the new ones.
Did you find this story helpful?
Thank you for voting!
Throwing a lot of sparks; cutting a little crooked; Cord was cut a few times and was pretty short.
Removed brush cover and old brush; dropped the curved end into brush holder and screwed brush cover back on; Do the same for both brushes. Make sure you have inserted the curved end first.
Remove old cord; remover two screws holding cord clamp in place; disconnect wires; and replace with new cord. I soldered a loop connector on
... Read morethe green ground wire and put solder on the naked ends of the white and black wired. Make sure the cord protector is on. Screw in the cord clamp and screw in the ground wire.
Remove blade and old tires, replace tires aligning groves of tires with knobs on wheels.
Replace front and rear blade guides. Each has two screws.
Replace blade
Removed blade then removed old blade tires then installed new ones making sure the teeth slipped into the grooves on new tire. Then unscrewed and removed the cam followers then installed new ones and reinstalled reversing steps for removal. Reinstalled blade and tested. Works like new now.
