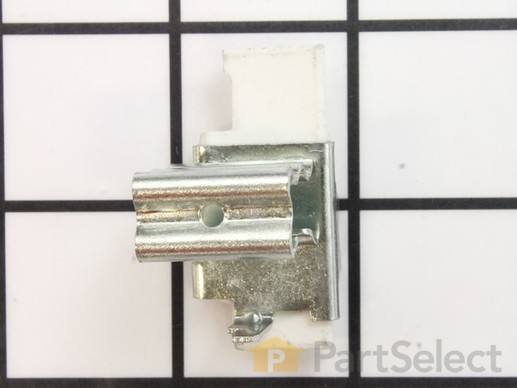

Part Location Diagram of 1604336021 Bosch Tool BRUSH HOLDER
See part 16 in the diagram
( Grid squares measure 1x1 inch )

BRUSH HOLDER 1604336021

Manufactured by:
Bosch Tool
ERP Number:
ERP19500135
Part Number:
1604336021
Original Equipment Manufacturer ?
  Works with your model  1363!
Special Order

Easy

15 - 30 mins

(3 rated repairs) ?
  Works with your model   1363!

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Bosch
This part works with the following products:
  • Angle Grinder
Part# 1604336021 replaces these:
  • 1604336021

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
  • 5 stars
    1
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(3 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Brushes & Brush Holder Was Bad.

Todd from Pittsfield, Illinois

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Took old brushes & Brush holder out and Installed New ones.
Did you find this story helpful?
Thank you for voting!

Brush was old and worn out

Jake from BLACKWATER, Virginia

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
1607014194, 1604336021
Removed the old housing and brush set.
Ordered the correct parts for repair.
The parts arrived in only 3 days with regular shipping.
Replaces the brush set.
Installed housing.
Reassembled unit.
Worked perfectly.
Did you find this story helpful?
Thank you for voting!

Brush holder slippage and shorting

Andrew from Brooksville, Florida

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
1604336021
As a added precaution, put shrink tubing on the brush wires. Also, a lock washer on the screw that holds the brush holders to the casing. This prevents loosening from vibration. The regular install simply slides into the grooves and the wire plugs into the power source. Easy replacement.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP19500135
Manufacturer Part Number: 1604336021
Brand Model Number Description
Bosch 0601367739 Chainsaw - Wall Chasing Machine
Bosch 1353 Angle Grinder - (060039) Angle Grinder
Bosch 1356G Angle Grinder - Angle Grinder
Bosch 1357 Angle Grinder - (060039) Angle Grinder
Bosch 1357G Angle Grinder - Angle Grinder
Bosch 1361G Angle Grinder - Angle Grinder
Bosch 1362 Angle Grinder - (060039) Angle Grinder
Bosch 1362G Angle Grinder - Angle Grinder
Bosch 1363 Angle Grinder - (060039) Angle Grinder
Bosch 1364 Chop Saw - (060039) Cut-Off Machine
Bosch 1364K Miscellaneous - 12" Abrasive Cutoff Machine Kit
Bosch 1365 Chop Saw - (060039) Cut-Off Machine
Bosch 1365K Chop Saw - 14" Abrasive Cutoff Kit
Bosch B9600 Angle Grinder - Angle Grinder
Bosch GWS18-230 Angle Grinder - 220V - 230V Angle Grinder
Bosch GWS24300 Grinder - Angle Grinder
